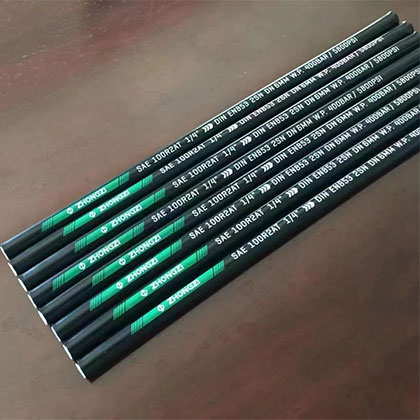

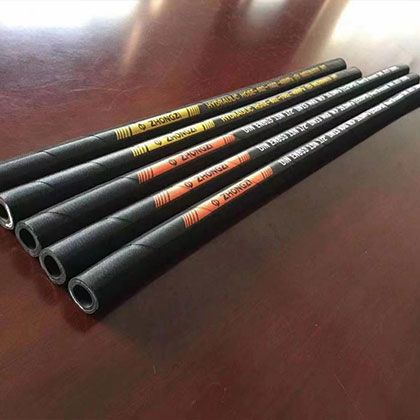

SAE100 R2A,SAE100 R2AT EN853 2SN

Categories :
Contact Now
  • Description

CONSIRUCTION :This hose is composed of an inner tube of oil synthetic rubber ,two wire braided reinforcements, and an oil and weather resistant synthetic rubber cover.

APPLICATIONS :It is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water, etc.

WORKING TEMPERATURE : fom40℃ up to+ 100℃

SAE100 R2A

Size Size LD WD OD WP PP BP Min BR WT
最小 最大 最小 最大 2ST型 2SN型
mm Inch Min Max Min Max Min Max Max Mpa Psi Bar Mpa Psi Bar Mpa Psi Bar Inch mm kg/m
5 3/16 4.6 5.4 10.6 11.6 15.1 16.7 14.1 41.5 6020 415 83 12035 830 165 23925 1650 3.54 90 0.32
6.3 1/4 6.2 7.0 12.1 13.3 16.7 18.3 15.7 40 5800 400 80 11600 800 160 23200 1600 3.94 100 0.36
8 5/16 7.7 8.5 13.7 14.9 18.3 19.9 17.3 35 5075 350 70 10150 700 140 20300 1400 4.53 115 0.45
10 3/8 9.3 10.1 16.1 17.3 20.6 22.2 19.7 33 4785 330 66 9570 660 132 19140 1320 5.12 130 0.54
12.5 1/2 12.3 13.5 19.0 20.9 23.8 25.4 23.0 27.5 3990 275 55 7975 550 110 14950 1100 7.09 180 0.68
16 5/8 15.5 16.7 22.2 23.8 27.0 28.6 26.2 25 3625 250 50 6235 500 100 14500 1000 7.87 200 0.80
19 3/4 18.6 19.8 26.2 27.8 31.0 32.6 30.1 21.5 3120 215 43 4710 430 85 12325 850 9.45 240 0.94
25 1 25.0 26.4 34.1 35.7 38.5 40.9 38.9 16.5 2390 165 32.5 3525 325 65 9425 650 11.81 300 1.35
31.5 1-1/4 31.4 33.0 43.3 45.7 49.2 52.4 49.5 12.5 1810 125 25 2625 250 50 7250 500 16.54 420 2.15
38 1-1/2 37.7 39.3 49.6 52.0 55.6 28.8 55.9 9 1305 90 18 2610 180 36 5220 360 16369 500 2.65
51 2 50.4 52.0 62.3 64.7 68.2 71.4 68.6 8 1160 80 16 2320 160 32 4640 320 24.80 630 3.42

SAE100 R2AT EN853 2SN

Size Size LD WD OD WP PP BP Min BR WT
最小 最大 最小 最大 最大
mm Inch Min Max Min Max Max Mpa Psi Bar Mpa Psi Bar Mpa Psi Bar Inch mm kg/m
6.3 1/4 6.1 6.9 10.6 11.7 14.2 40 5800 400 80 11600 800 160 23200 1600 2.95 75 0.30
8 5/16 7.7 8.5 12.1 13.3 16.0 35 5075 350 70 10150 700 140 20300 1400 3.35 85 0.34
10 3/8 9.3 10.1 14.4 15.6 18.2 33 4785 330 66 9570 660 132 19140 1320 3.54 90 0.42
12.5 1/2 12.3 13.5 17.5 19.1 21.5 27.5 3990 275 55 7975 550 110 14950 1100 5.12 130 0.54
16 5/8 15.5 16.7 20.5 22.3 24.7 25 3625 250 50 7250 500 100 14500 1000 6.69 170 0.68
19 3/4 18.6 19.8 24.6 26.4 28.6 21.5 3120 215 43 6235 430 86 12470 860 7.87 200 0.80
25 1 25.0 26.4 32.5 34.3 36.6 16.5 2390 165 33 4785 330 66 9570 660 9.84 250 1.15
